Product Introduction

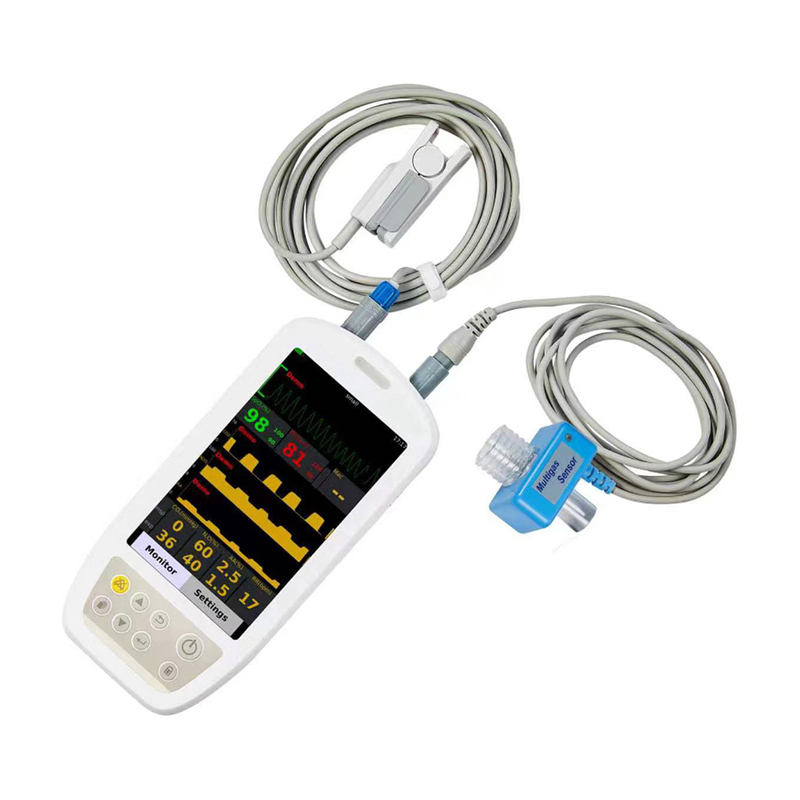

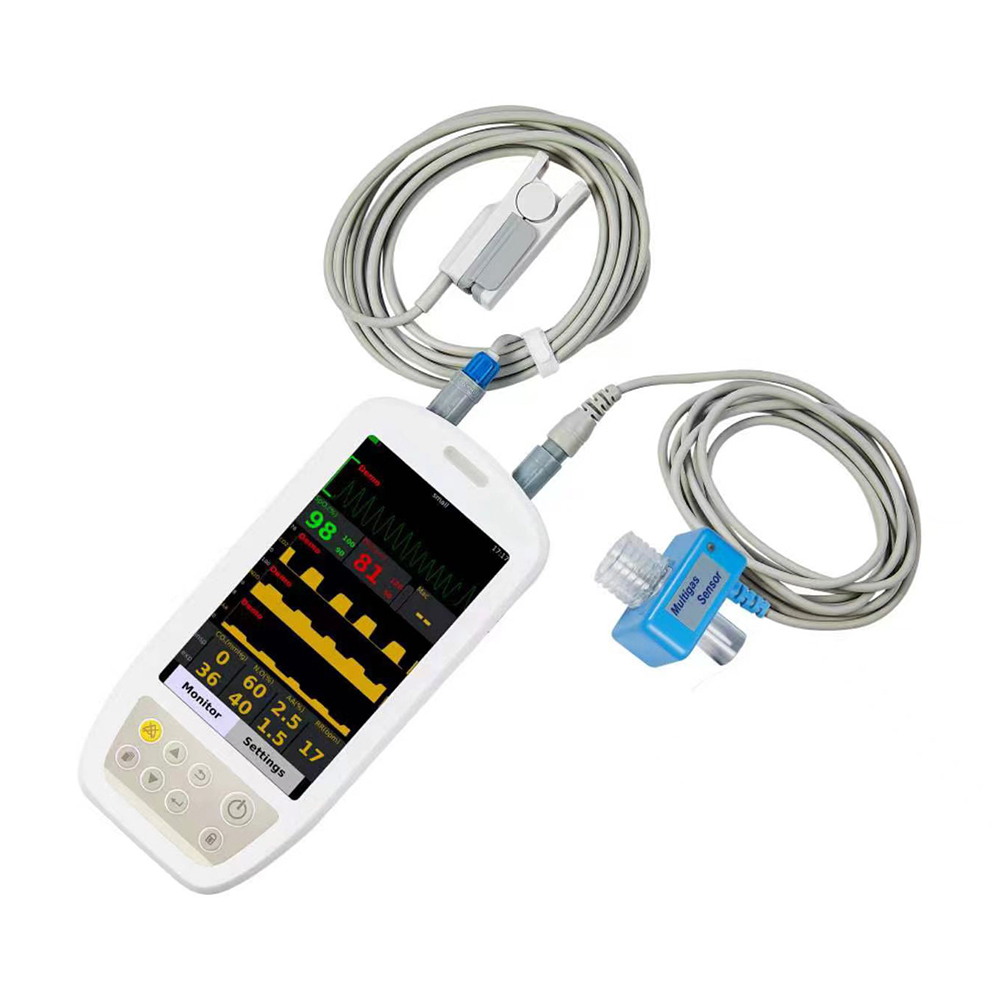

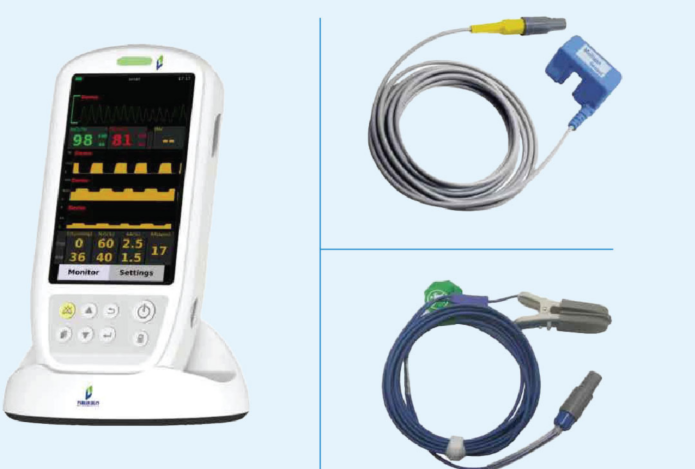

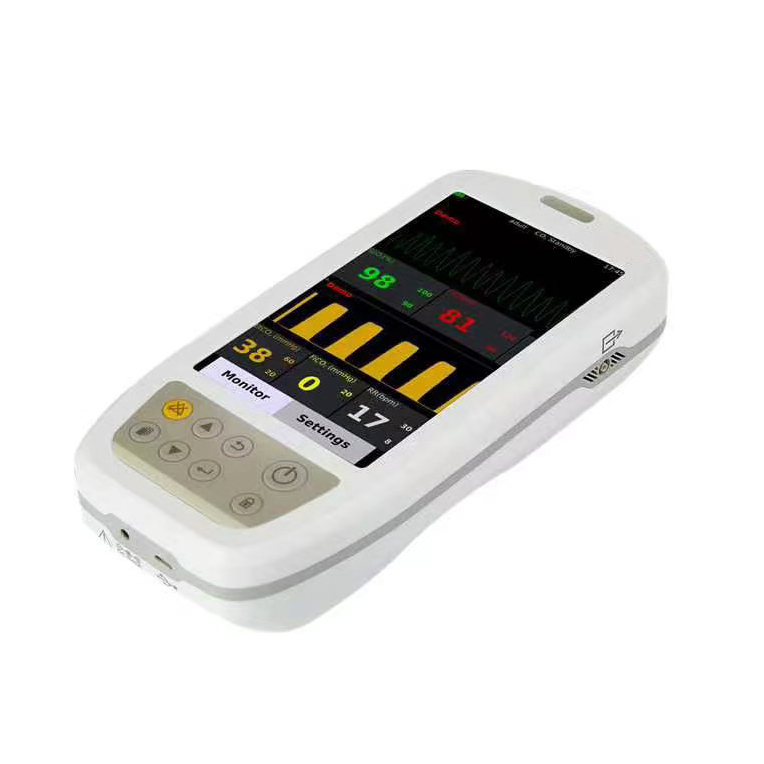

HM-310 is a hand-held model for AG gas monitoring. It can automatically identify the anesthesia agent. The parameter of HM-310 can monitor include: Anesthesia Agent (Isoflurane, Sevoflurane). N2O, ETCO2, RR, SPO2 and PR in ICU, operation room and emergency environment for vet.
Technical Parameter
Parameter | Range | Accuracy |
EtCO2 | 0-15% | ±(0.2%+5% of reading) when data betwen 0-10% ±(0.2%+8% of reading) when data between 10-15% |
RR | 0-150 bpm | ±1bpm |
SPO2 | 0-100% | ±2% (when data between 70-100%) |
N2O | 0-100% | ±(2%+3% of reading) |
Sevoflurane | 0-10% | ±(0.15+5% of reading) when data between 0-5% ±(0.3%+10% of reading) when date between 5-10% |
Isoflurane | 0-8% | ±(0.15+5% of reading) when data between 0-5% ±(0.3%+10% of reading) when date between 5-10% |
Screen | 5.5 inch | |
Parameters Displayed | ETCO2, FICO2, SPO2, RR, PR, AG, MAC | |
Dimension and Net Weight | 202 *95 *45 mm / 900g | |
