Product Features
· 8 Inch color touch screen, user friendly interface
· Parameters automatically match to animal weight

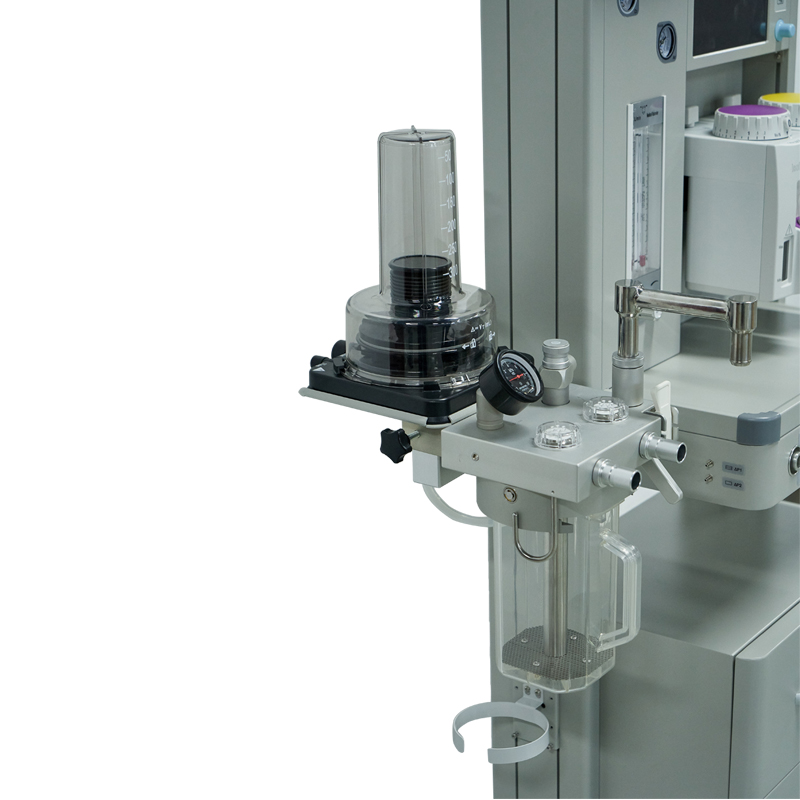

· Non-rebreathing circuit interface is designed at the front of the machine, which is convenient for small animal anesthesia
· Multiple ventilation modes including VCV, PCV, SPONT, DEMO, MANUAL to meet series of clinical needs
· Built-in high precision sensor and valve control technology ensure the safety, stability and accuracy of pressure, flow and volume monitoring and control
· Equipped with high-precision anesthesia vaporizer
· Integrated circuit, easy to install and remove
· Dome light system provides better vision for doctors
Technical Parameters
| Main Unit | |
Screen | 9 inch touch screen |
Working Mode | closed, semi-closed, semi-open, open |
Driving Mode | Pneumatically driven and electrical controlled |
Application Range | 0.5-100 kg animal |
Anesthesia gas source switch | start or stop the gas source control |
Pressure Gas Gauge | four press gauge, one is oxygen source pressure, one is oxygen working |
Oxygen Flush | 25 – 75 L/min |
Airway Pressure | O2：0.25-0.65 MPA |
Alarm Parameter | tidal volume high, low oxygen alarm, apnea, power failure |
| Anesthesia Ventilator | |
Ventilation Mode | VCV, PCV, SPONT, MANUAL, DEMO |
Bellow | 0-300 ml & 0-1600 ml |
Waveform | pressure, flow, volume |
Loop | P-V, P-F, F-V |
Tidal Volume | Auto: 20-1600 ml |
Manual control:5-1600 ml | |
Breathing Rate | 1-100 bpm |
I : E | 9.9:1-1:9.9 |
Inspiratory Time | 0.1-10.0 S |
Inspiratory Pause | 0-50% |
Peep Off | 3-20 cm H2O |
Pressure Support | 5-60 cm H2O |
Flow Trigger | 0.5-20 L/min |
Pressure Trigger | -1-20 cmH2O |

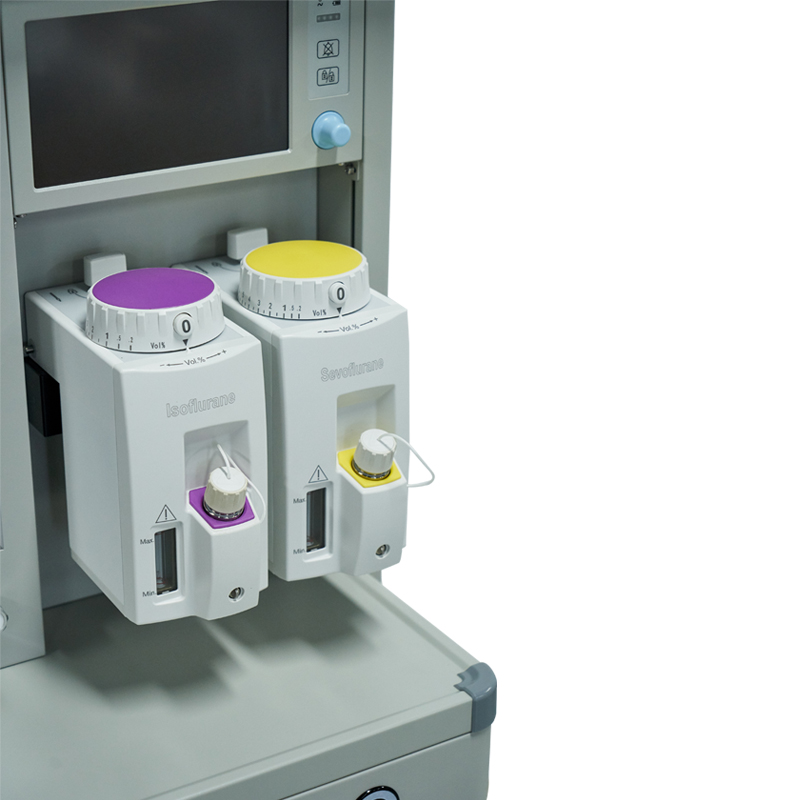

| Vaporizer | |
Concentration Range | Isoflurane 0.2-5% |
Sevoflurane: 0.2-8% | |
Anesthetic Volume | 340 ml |

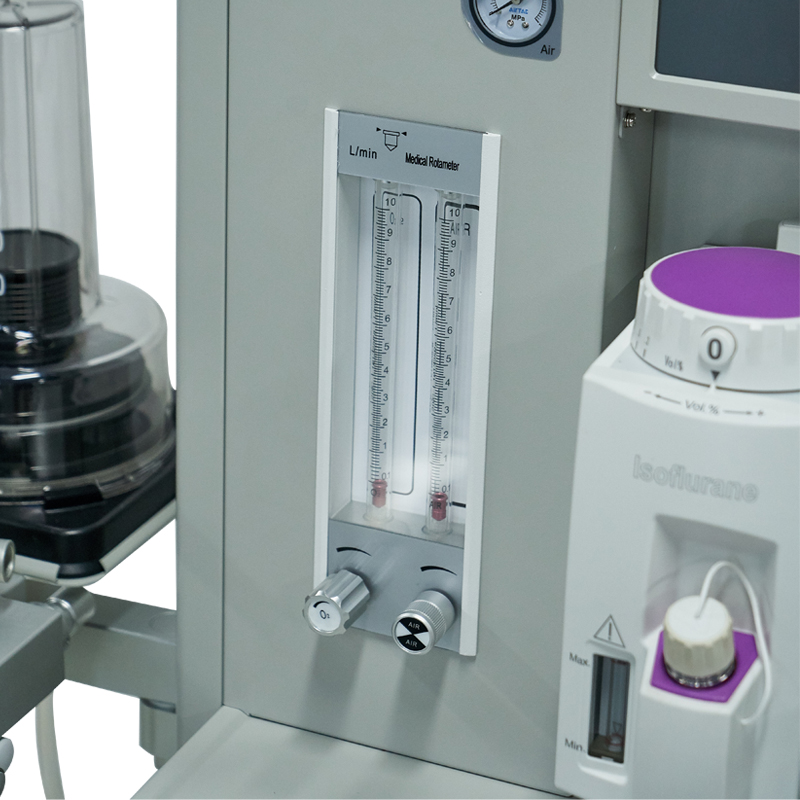

| Flowmeter | |
Oxygen | 0-10 L/min |
Air | 0-10 L/min |
