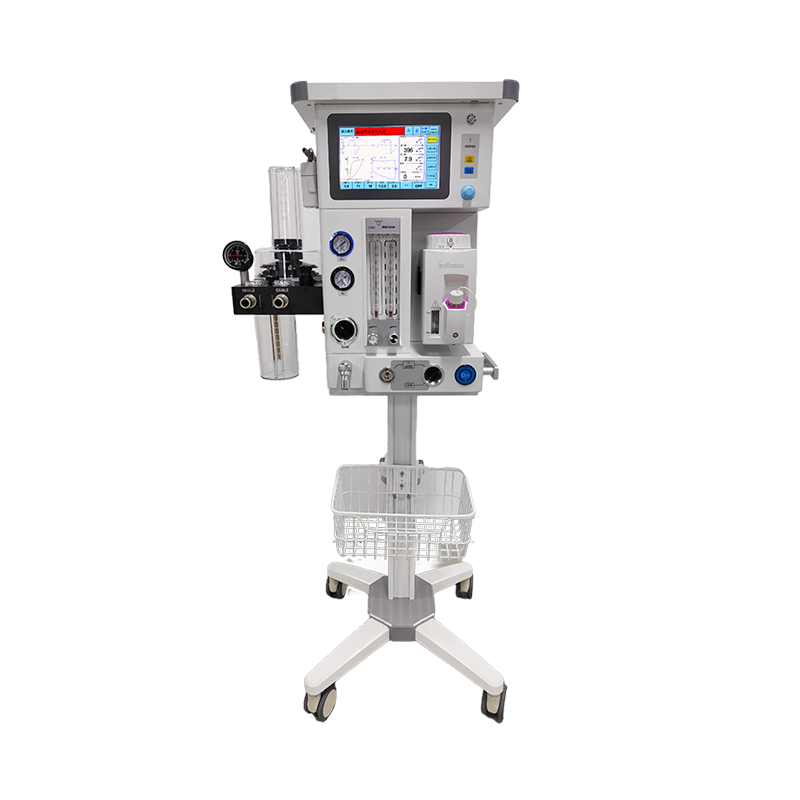

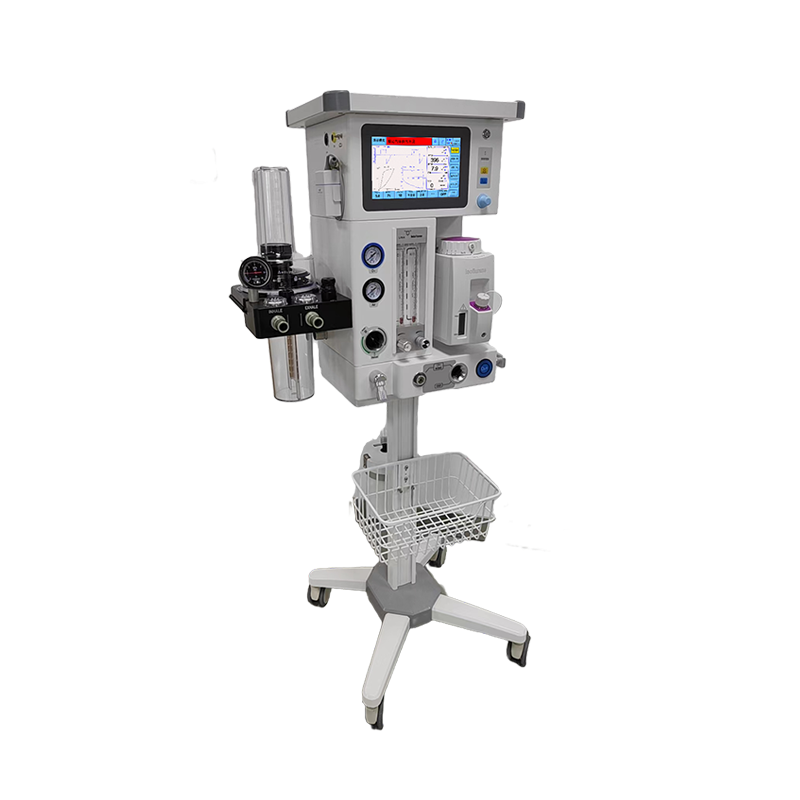

Product Features
· Turbine integrated, can be driven by oxygen concentrator
· 9 Inch color touch screen
· Parameters automatically match to animal weight
· Non-rebreathing circuit interface is designed at the front of the machine, which is convenient for small animal anesthesia
· Multiple ventilation modes including VCV, PCV, SPONT, DEMO, MANUAL to meet series of clinical needs
· Built-in high precision sensor and valve control technology ensure the safety, stability and accuracy of pressure, flow and volume monitoring and control

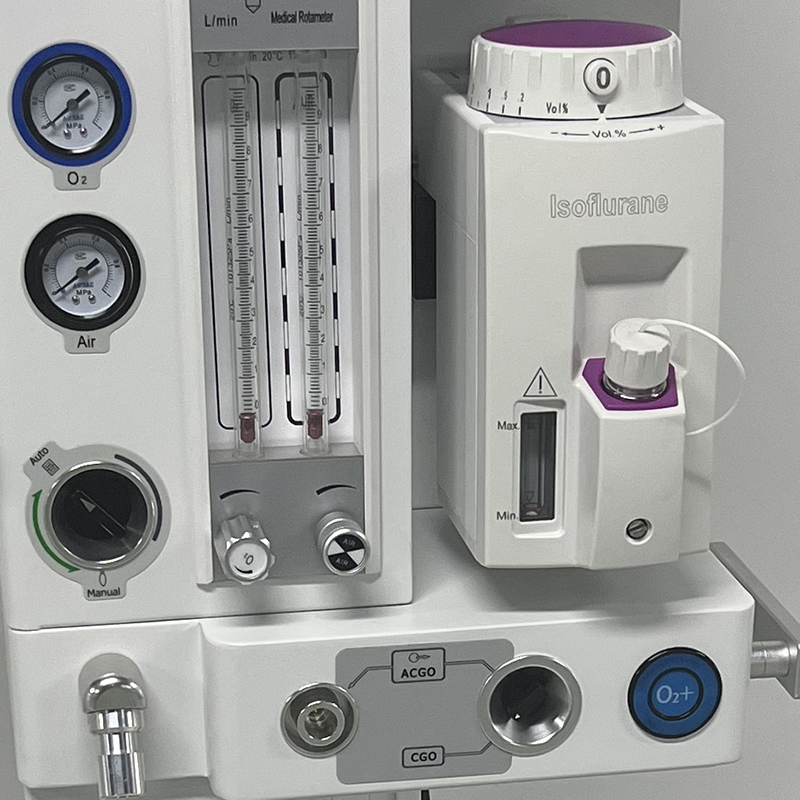

· Equipped with high-precision anesthesia vaporizer

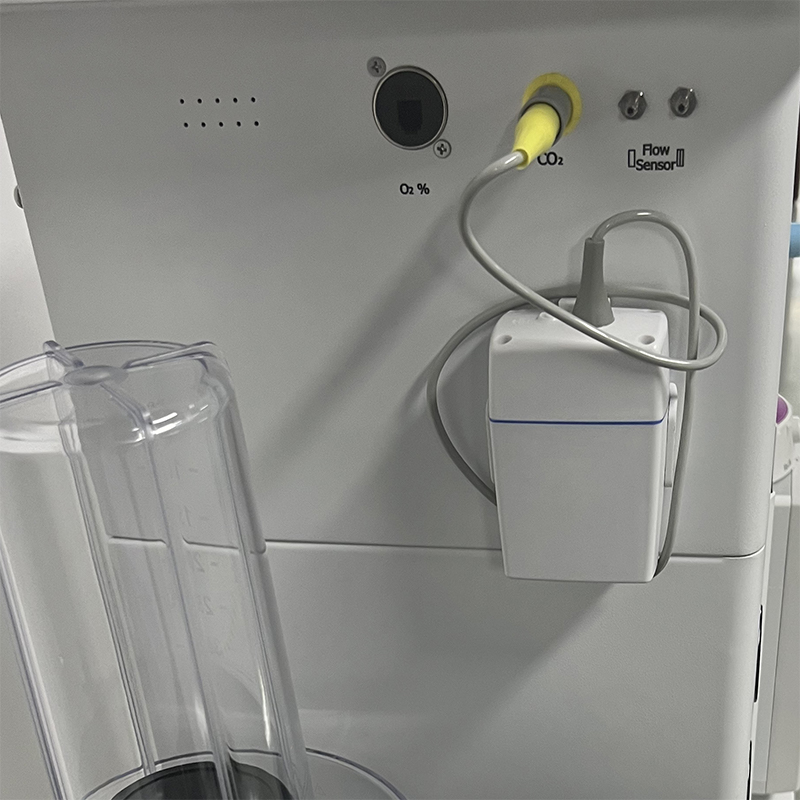

· ETCO2 module as standard configuration
· CO2 Absorber heating function, comfortable and safety anesthesia
Technical Parameters
| Main Unit | |
Screen | 9 inch touch screen |
Application Range | Animal 0.8-120 KG |
Oxygen Flush | 25 – 75 L/min |

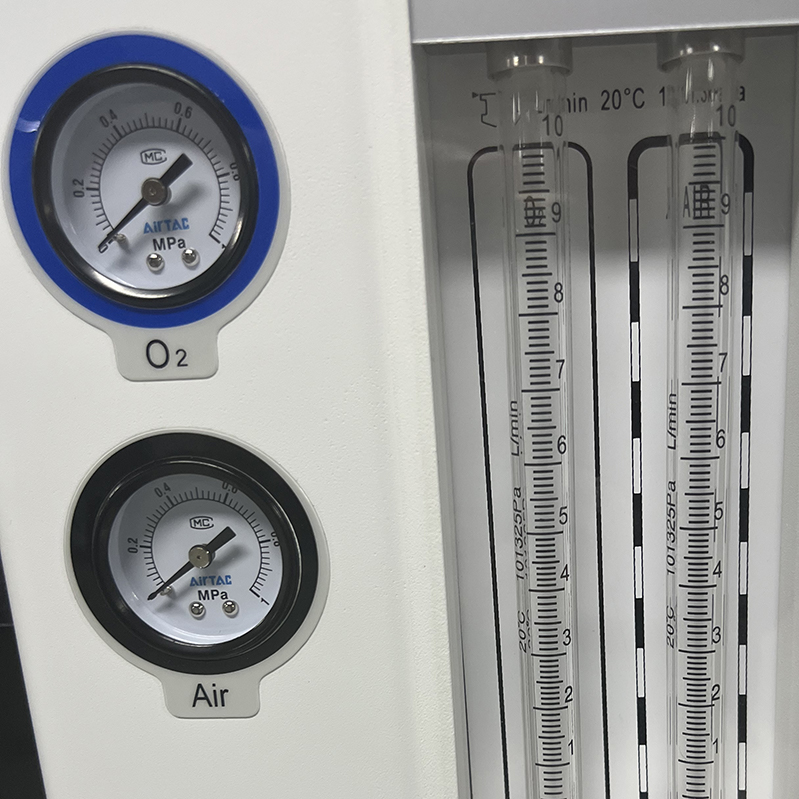

Flowmeter | |
Oxygen | 0-10 L/min |
Air | 0-10 L/min |
| Anesthesia Ventilator | |
Driving Mode | electrical driven and electrical control |
Ventilation Mode | VCV, PCV, SPONT, MANUAL, DEMO |
Bellow | 0-300 ml & 0-1600 ml |
Waveform | pressure, flow, volume |
Loop | P-V, P-F, F-V |
Tidal Volume | Auto: 20-1600 ml |
Manual control:5-1600 ml | |
Breathing Rate | 1-100 bpm |
I : E | 9.9:1-1:9.9 |
Inspiratory Time | 0.1-10.0 S |
Inspiratory Pause | 0-50% |
Peep Off | 3-20 cm H2O |
Pressure Support | 5-60 cm H2O |
Flow Trigger | 0.5-20 L/min |
Pressure Trigger | -1-20 cmH2O |
| Vaporizer | |
Concentration Range | Isoflurane 0.2-5% |
Sevoflurane: 0.2-8% | |
Anesthetic Volume | 340 ml |
| Flowmeter | |
Oxygen | 0-10 L/min |
Air | 0-10 L/min |
