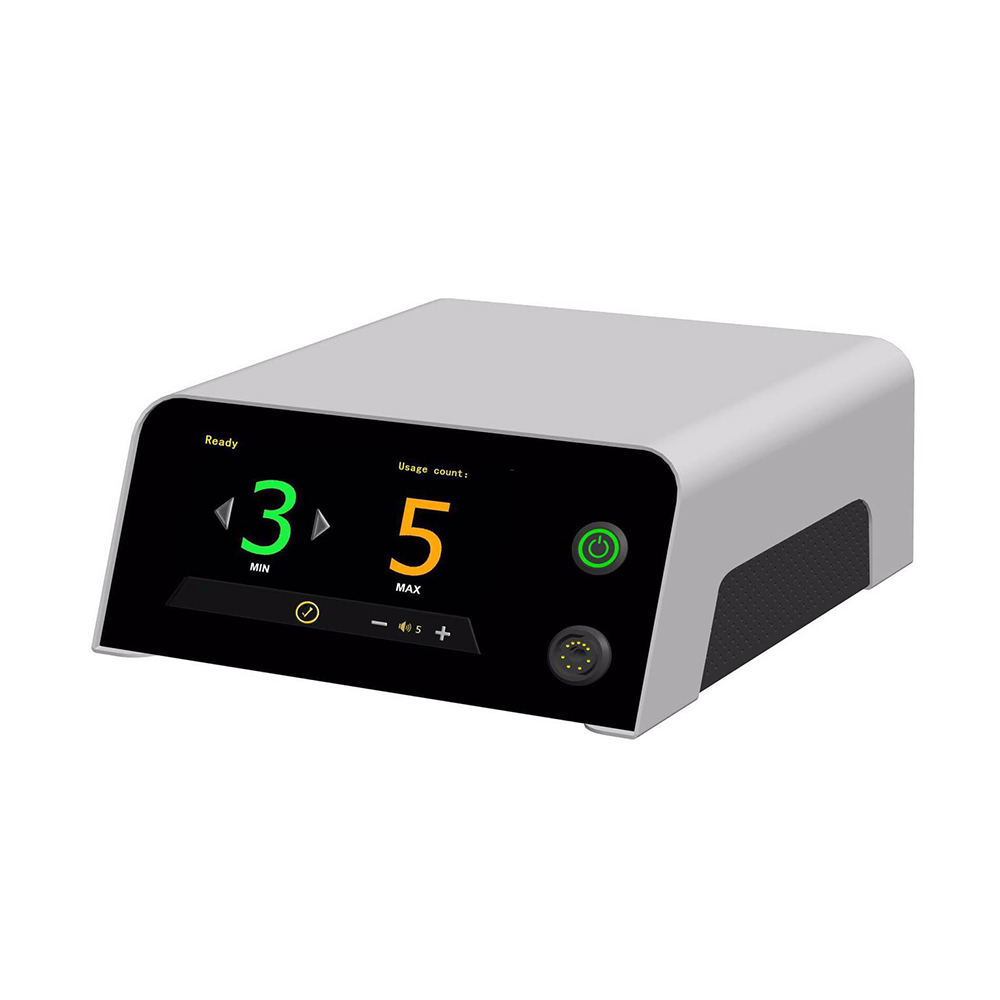

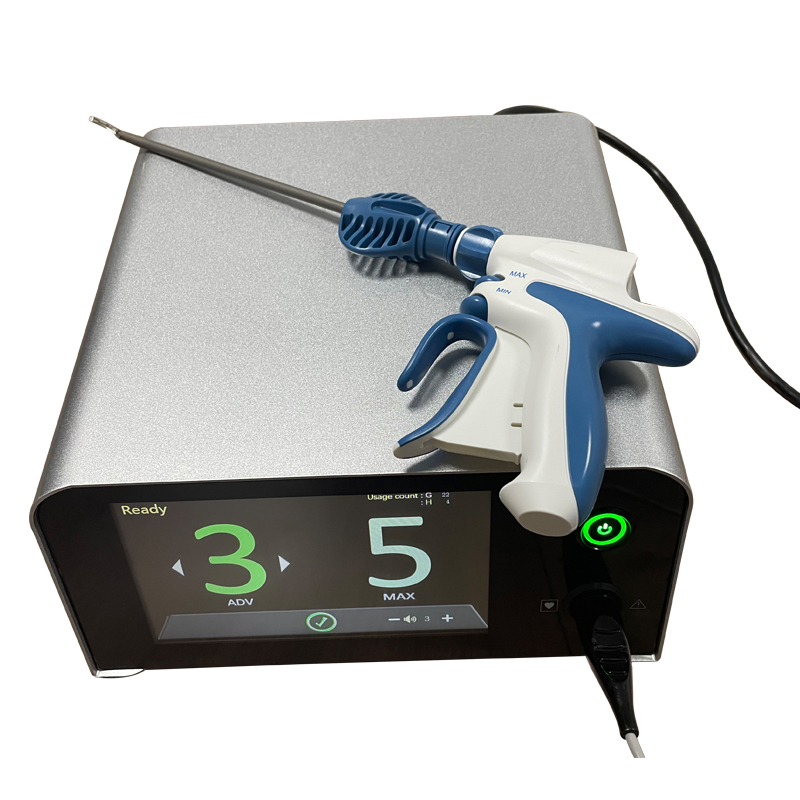

Veterinary Ultrasonic Scalpel VM-ZSG1

Working theory

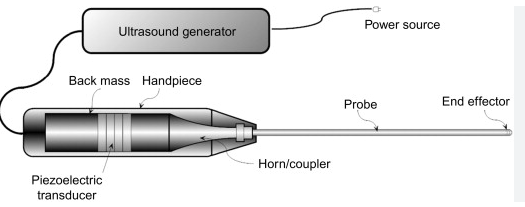

Ultrasonic scalpel consists of main components such as generator, handle, scalpel, and foot pedal. There is a transducer in the handle, which converts the high-frequency electrical energy provided by the host generator into ultrasonic mechanical vibration energy, and transmits it to the cutter head while transmitting ultrasonic energy to perform hemostatic cutting or coagulation of the tissue. The vibration frequency of the cutter head About 55.5kHz

High-power ultrasonic waves can vaporize moisture in tissue cells in contact with the blade in an instant, break protein hydrogen bonds, disintegrate cells, and cut the tissue. The frictional heat caused by mechanical vibration can coagulate and stop bleeding while cutting the tissue. Correct Different surgeries can be performed by selecting the blade.

The scalpel has two blades, one is the working blades that applies ultrasonic waves, and the other has a white toothed pad. The purpose of this white pad is to better hold the tissue and enhance the coagulation effect.

Product Feature

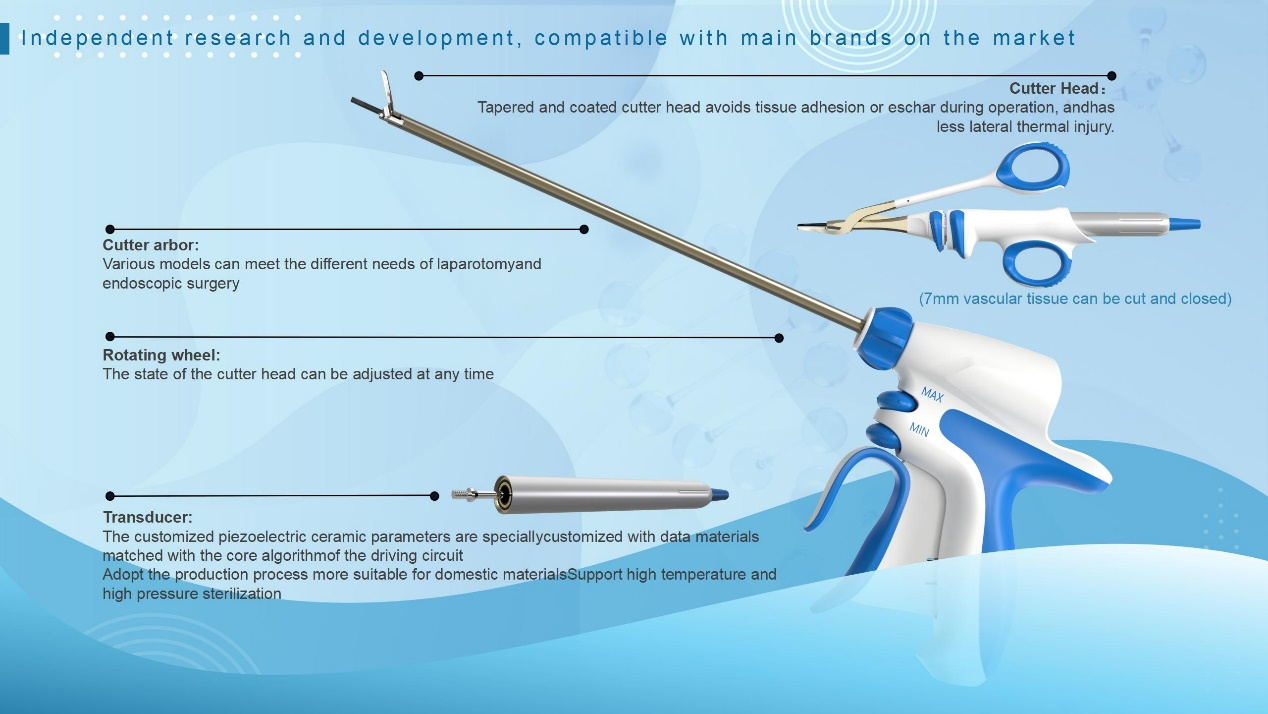

Scalpel

· VetMED scalpels are compatible with main brands of ultrasonic generator on the market

· Tapered and coated cut head avoids tissue adhesion and eschar, minimum laterial thermal injury

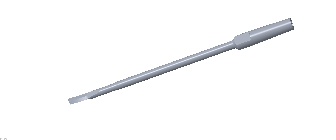

· Different length of scalpels provided to meet laparotomy and endoscopic surgery requirement

· Scissor type scalpel can cut and seal maximum 7 mm vein

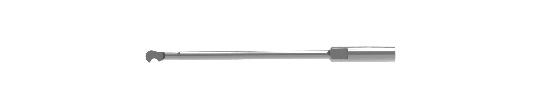

· Unique skin cutting scalpel and hook scalpel for tumor resection

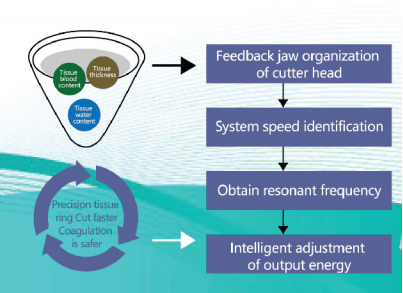

Intelligent Algorithm

Better Tissue Protection

· The maximum temperature of the cut head is lower when it continuously work

· When the tissue temperature is lower than 90℃, the lateral damage rage is less than 1mm

Configuration Sheet
