Product Feature

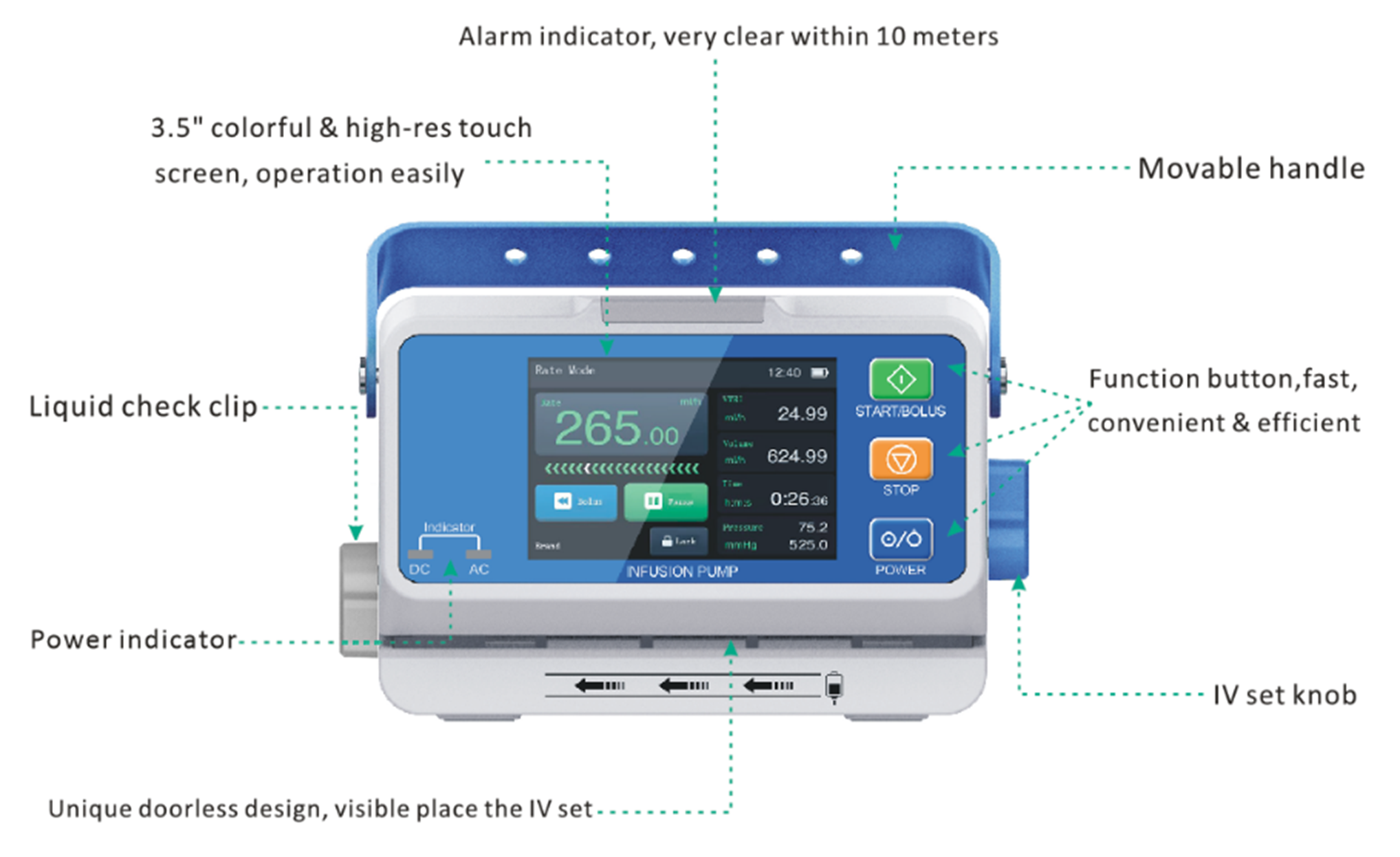

· 3.5 Inch color touch screen, easy to operate
· Unique doorless design, visible place the IV set directly, convenient and fast;
· Dual CPU control, IP34 dustproof and water proof
· Horizontally IV set placing design can reduce the bubbles error alarm
· DPS dynamic pressure monitoring, real-time display of the current pressure value
· 3 stage peristaltic design makes infusion set stress evenly and improving infusion accurately, extending life of infusion pump and IV set, reduce workload and make the patient more comfortable
· Light in weight and big battery capacity
Technical Parameter
Screen | 3.5 inch color touch screen |
Flow Rate Range | 0.1-1200 ml/h, increment 0.01 ml/h |
VTBI | 0-9999.99 ml |
Time | 1-99h59min |
KVO | 0.1~5.0ml/h, increment 0.1ml/h |
Drug library | 34 Units |
Accuracy | ±5% (use the IV set calibrated) |
Purge | 0.1-1200ml/h |
Bolus Rate | 0.1-1200 ml/h, Automatic/Manual bolus available. |
Anti-bolus | automatically reduce the tube pressure when the tube is blocked |
Bubble Size | adjustable 50/100/250/500/800 μl |
Data Record | 2000 |
Night Mode | Setting and adjustable |
Alarm | Air in Line /Exceed Accum. Bubbles/ Downstream Occlusion /[Pls Install the IV set correctly /Time Near End/Reminder/Low Battery/No Battery/No Battery Inserted/IV set or Knob is not Installed Well/System Error/KVO Finished/VTBI Completed/No AC Power/Pls check the Liquid Check Clip/Air in Line or right IV set is not Installed Well/ Standby Time Expired/The IV set Knob is not Closed. |
IV Set | Dia3-4.8mm. 2 built-in brand for choice, and can User defined with calibration methods, and can change or add the IV set brand name for 30 pcs. |
Size (L *W *H) | 165 *103 *100 mm |
Weight | 1.3 KG |
